Next Gen Model

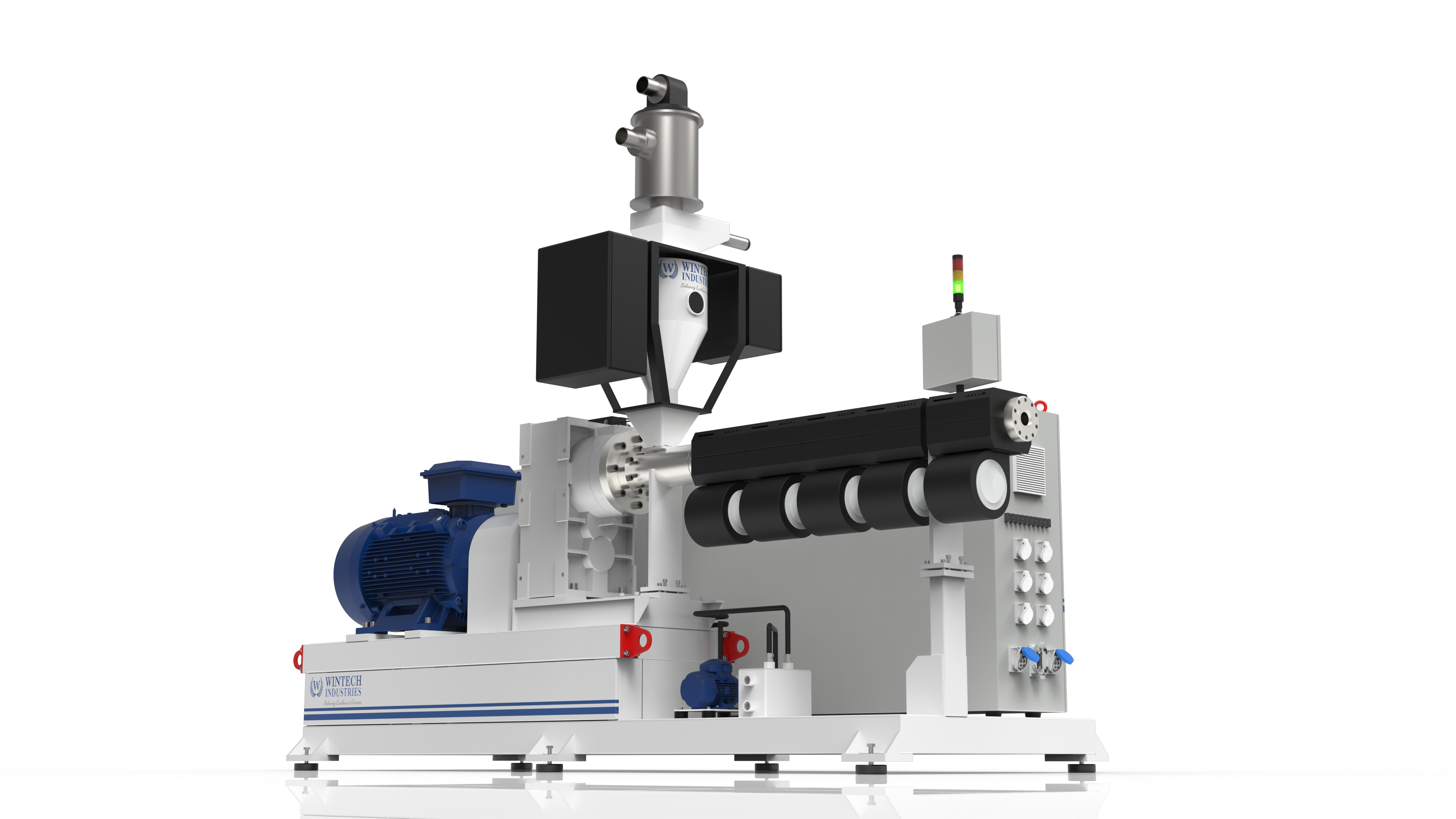

Wintech offers a next-generation High-Speed model of a Single Screw Extruder dedicated to Polyolefins materials. The Screw Barrel of High-Speed model is designed and developed in a way to ensure higher output, low melt temperature, and better result in melt quality.

Download Brochure

Salient Features

Higher L/D ratio

Next-Generation Machine with higher Screw RPM

Proven technology ensures excellent output capacity

Direct-coupled designed with minimum friction loss

TC coated Screw ensures less wear and tear

Higher output with good melt quality

Applications

Technical Specifications

Model	Screw Dia (mm)	L/D Ratio	Extruder Drive (kW)	Output (kg)
WHPE 45-160	45	37:1	45	140-160
WHPE 45-190	45	37:1	55	180-190
WHPE 45-240	45	37:1	75	220-240
WHPE 45-330	45	37:1	90	300-330
WHPE 60-400	60	37:1	110	380-400
WHPE 60-550	60	37:1	132	500-550
WHPE 75-850	75	37:1	225	750-850
WHPE 75-950	75	37:1	250	850-950
WHPE 90-1100	90	37:1	315	1000-1100
WHPE 90-1300	90	37:1	355	1200-1300
