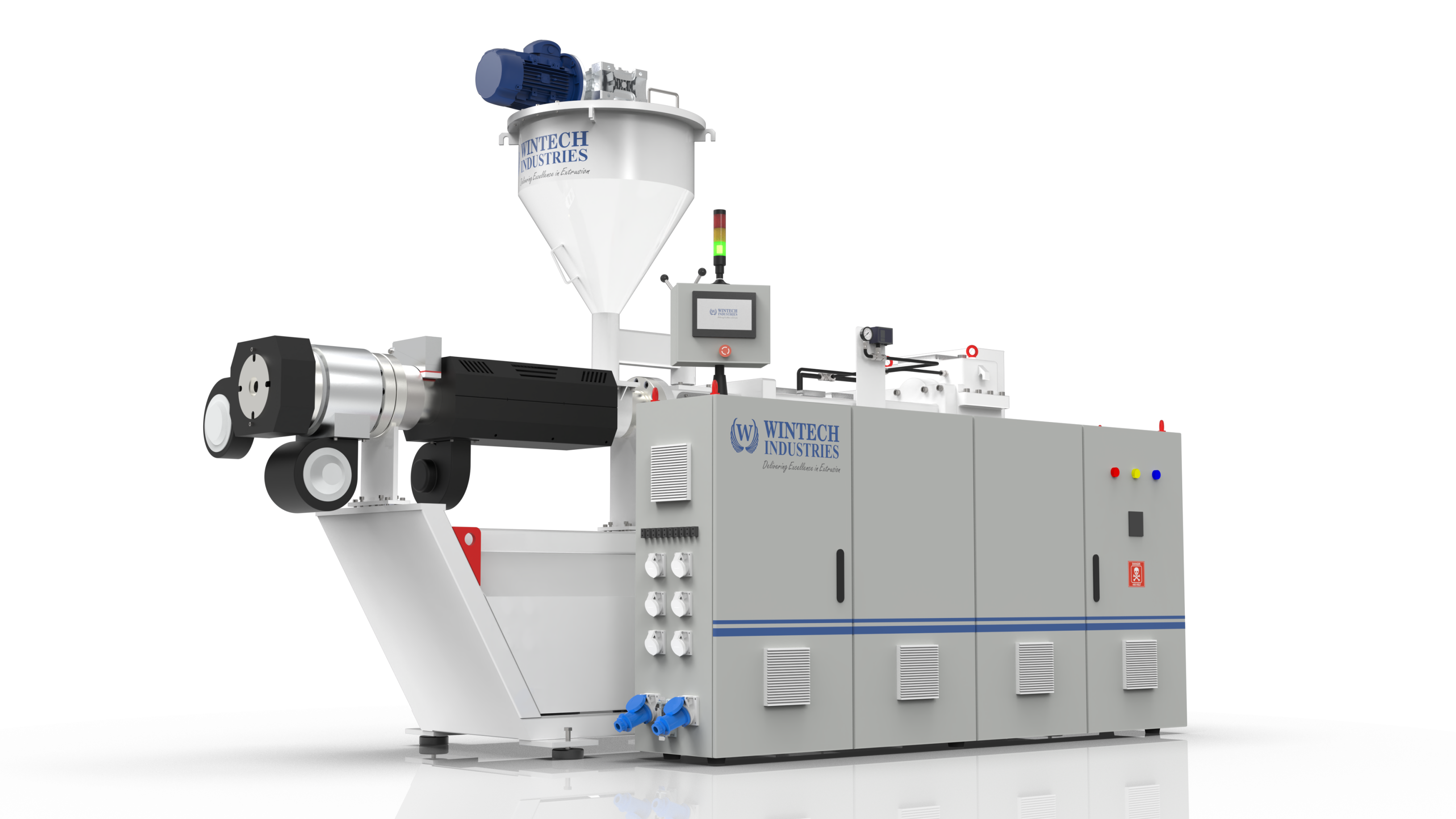

Twin Screw Extruder (pvc/upvc/cpvc)
PVC is a very heat-sensitive material and difficult to process. Twin Screw Extruder is the proper solution to process the PVC with low power consumption. Wintech offers a complete range of PVC Pipe Extruders (Twin Screw) suitable to produce pipes ranging in diameter from 20mm to 630mm.
Salient Features

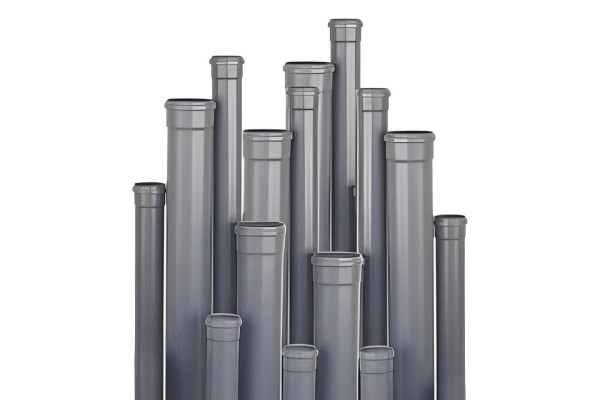

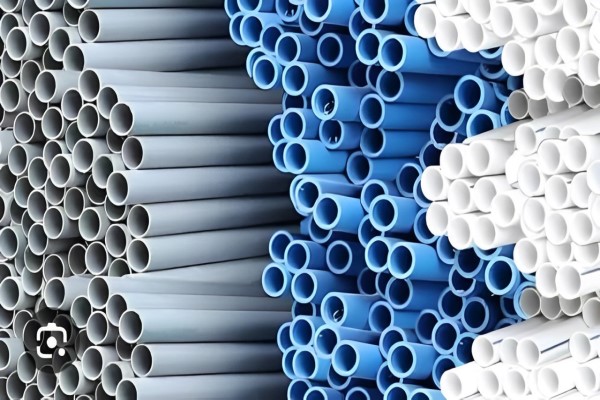

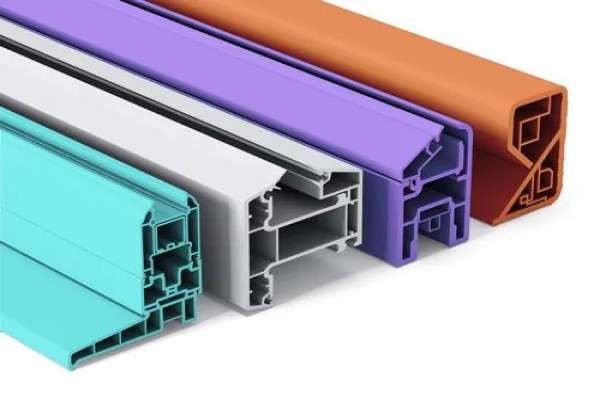

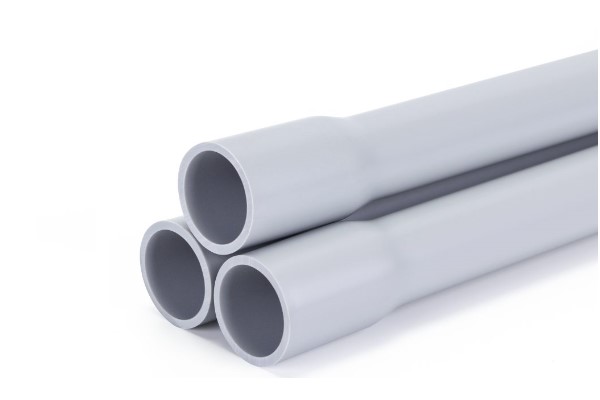

Applications
Technical Specifications
| Model | Screw Dia (mm) | L/D Ratio | Extruder Drive (kW) | Output (kg) | Pipe Range (mm) |
|---|---|---|---|---|---|
| WTS 110 | 52 | 20:1 | 11 | 100-110 | 20-100 |
| WTS 170 | 65 | 18:1 | 15 | 150-170 | 20-200 |
| WTS 200 | 65 | 18:1 | 22 | 180-200 | 20-200 |
| WTS 250 | 65 | 22:1 | 22 | 220-250 | 63-250 |
| WTS 350 | 71 | 28:1 | 30 | 320-350 | 110-315 |
| WTS 450 | 91 | 22:1 | 45 | 420-450 | 100-400 |
| WTS 550 | 91 | 25:1 | 56 | 520-550 | 110-400 |
| WTS 700 | 91 | 28:1 | 75 | 650-700 | 160-400 |
